GD39 Horizontal Directional Drill

Horizontal Directional Drilling Machine (HDD) is a no-dig construction machinery for laying various underground public facilities such as pipes and cables. HDD has been developing very fast in the past 20 years, it’s an important machinery for crossing project construction. Gookma Horizontal Directional Drill is developed according to market demand. Gookma focuses on small and medium size HDD, it includes different models, max drilling distance are from 300m to 500m, max drilling diameter from 900mm to 1100mm, widely meets various requirements of small and medium no dig projects.       Gookma GD39 HDD is the most popular machine in the market.

Products Details


Name Horizontal Directional Drill
Model GD33
Engine Cummins 153KW
Push and pull drive type Chain
Max pull back force 330KN
Max push and pull speed 17s
Max torque 14000N.m
Max reaming diameter 900mm (36in)
Standard configuration of reamer φ250-φ600mm (φ9.85-φ23.64in)
Max working distance 300m (984ft)
Drill rod φ73*3000mm (φ2.88*118.20in)
Standard configuration of drill rod 100 pcs
Mud pump displacement 320L/m
Walking drive type Rubber crawler
Walking speed Double speed
Rod changing type Semi-automatic
Anchor 3 pieces
Max grading ability 20°
Overall dimensions (L*W*H) 6550*2150*2250mm (258.07*84.71*88.65in)
Machine weight 10200kg (22487lb)

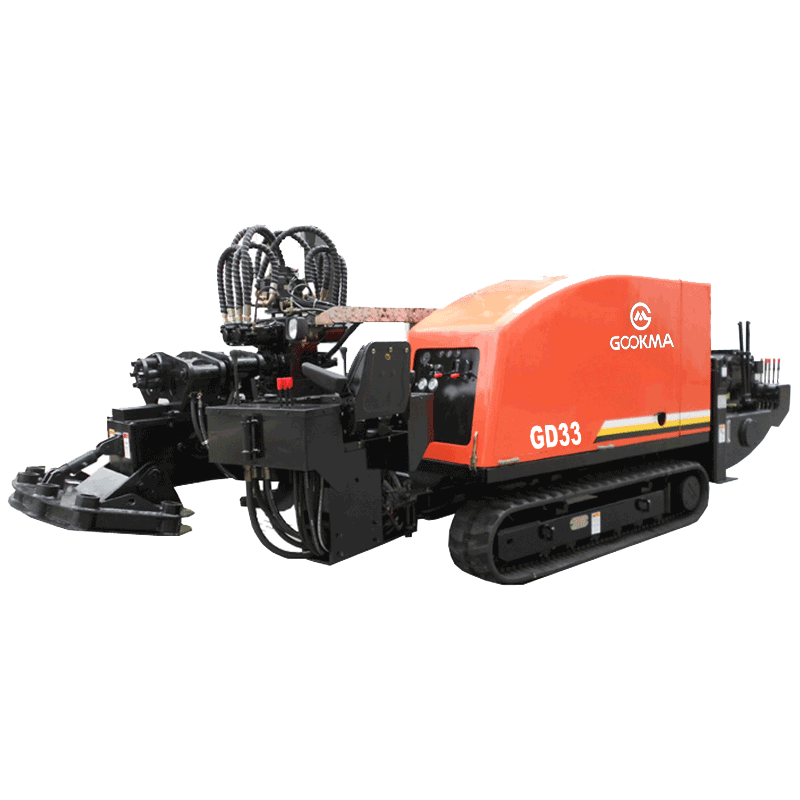

 Over-heating Proof  Cummins Engine  33T Pullback Force  Drilling Distance 300m (990ft)  Drilling Diameter 900mm (36in) 2 GD33 Horizontal Directional Drill

Features and Advantages:

Gookma horizontal directional drilling machine is professional Integrated designed with many technical advantages, makes the machine of stable performance and high efficiency. 1.The GD33 horizontal directional drill is of integrated design, with a novel overall looking. zxcxzc8 2.The engine is of strong power, low fuel consumption,stable and durable. zxcxzc5 3.Big torque, fast pushing and pulling speed, high working efficiency. 4.Strengthening design of chassis and main arm, working life more than 15 years.Strengthening design of chassis and main arm, working life more than 15 years. 5.Humanization design, simple in operation, easy control. 6.The hydraulic and electrical parts are of simplified design, make it simple structure, convenient in maintenance and repairing. Famous branded main components, ensure stability and reliability of the machine. The machine without any solenoid valve, the operator can repair the machine himself even without experience. zxcxzc6 zxcxzc7 7.Compact design, small size, agile mobility. 8.Special anti-heat design, makes the machine free from overheating, it is specially suitable for working under high temperature conditions.


Gookma GD33 horizontal directional drilling machine is widely applied in many no-digging pipes and cables crossing construction projects, such as highway, railway, irrigation, river, bridge, power supply and communication construction etc., and has been enjoying high reputation among customers because of its reliable performance and good price ratio. zxcxzc2 zxcxzc4 zxcxzc11 zxcxzc9 zxcxzc3 zxcxzc10 zxcxzc12
