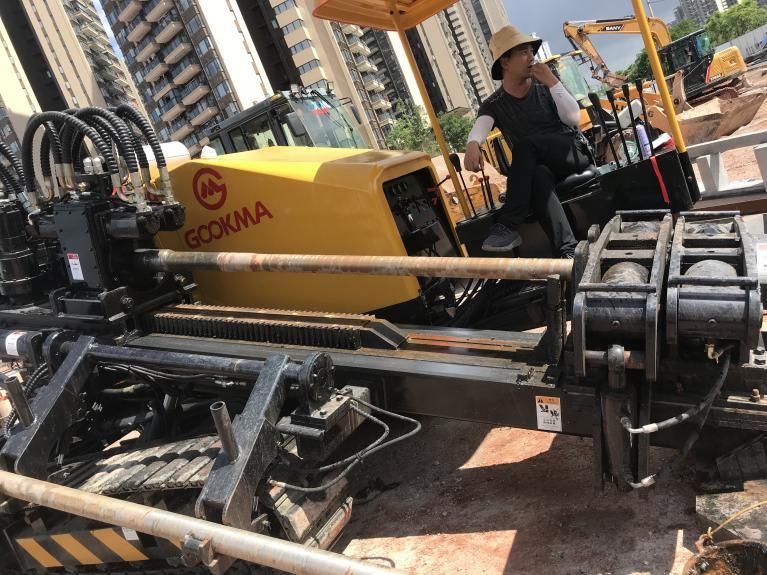

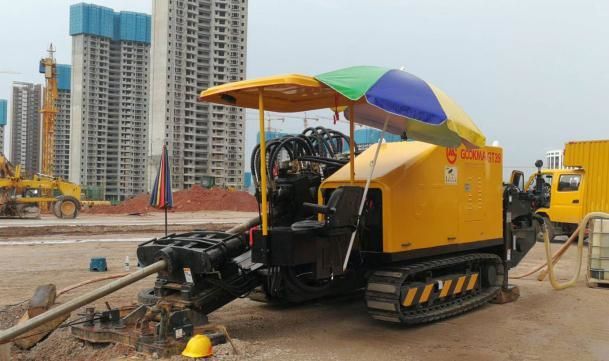

Horizontal Directional Drilling Machine GD39

● Max. drilling length:400m ● Max. drilling diameter:1100mm ● Max. push-pull force:390KN ● Power:153kw, Cummins

Products Details

1.The machine is of integrated design,with a novel overall looking. 2.Rack and pinion system,humanization design,easy for operation and maintenance.
Model GD39
Engine Cummins, 153KW
Max torque 16500N.m
Push-pull drive type Rack and pinion
Max push-pull force 390KN
Max push-pull speed 30m / min.
Max slewing speed 120rpm
Max reaming diameter 1100mm (depends on soil condition)
Max drilling distance 400m (depends on soil condition)
Drill rod Φ83x3000
Mud pump flow 450L/m
Mud pump pressure 10Mpa
Walking drive type Crawler self-propelling
Walking speed 2.5--5km/h
Entry angle 8-25°
Max gradeability 20°
Overall dimensions 6800*2250**2350mm
Machine weight 10800kg

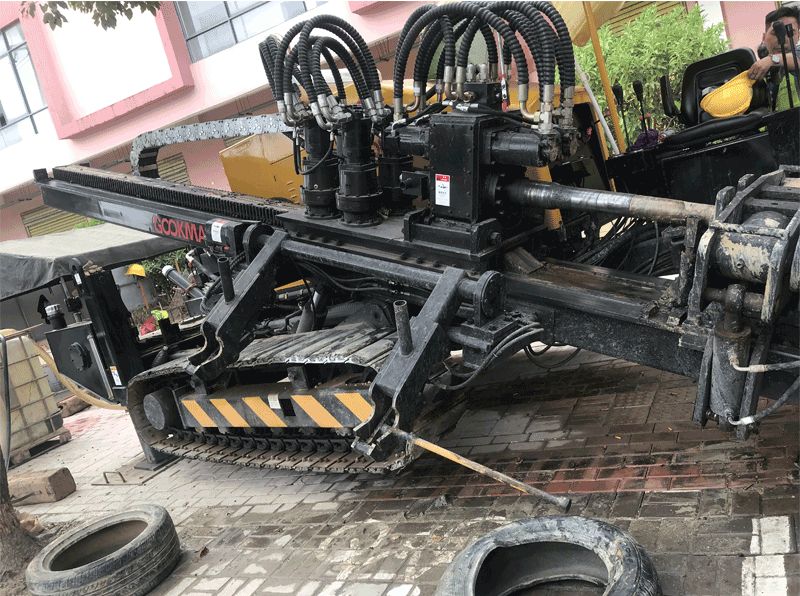

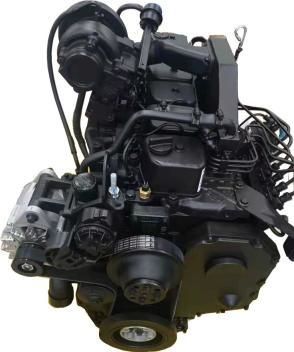

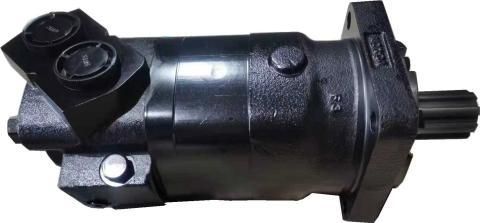

3.Equips with Cummins engine, strong power,low fuel consumption, stable and durable. 4. The hydraulic and electrical parts are of simplified design, make it simple structure, convenient in maintenance and repairing. The machine without any solenoid valve, the operator can repair the machine himself even without experience. 5.The machine equips with 9 Eaton motors of same model and same mounting dimensions, 4 for pushing and pulling, 4 for power head rotating and 1 for pipe changing.All motors are interchangeable, avoid wasting time to wait for new motor for replacing in case of damage of any motor.6.Big torque, fast pushing and pulling speed, high working efficiency. 7.Strengthening design of chassis and main arm, working life more than 15 years. 8. Humanization design, simple in operation, easy to control the machine.9.Famous branded main components, ensure stability and reliability of the machine. 10.Special anti-heat design, makes the machine free from overheating, it is specially suitable for working under high temperature conditions. 11. Compact design, small size, agile mobility, can be shipped in a 40’ container.
