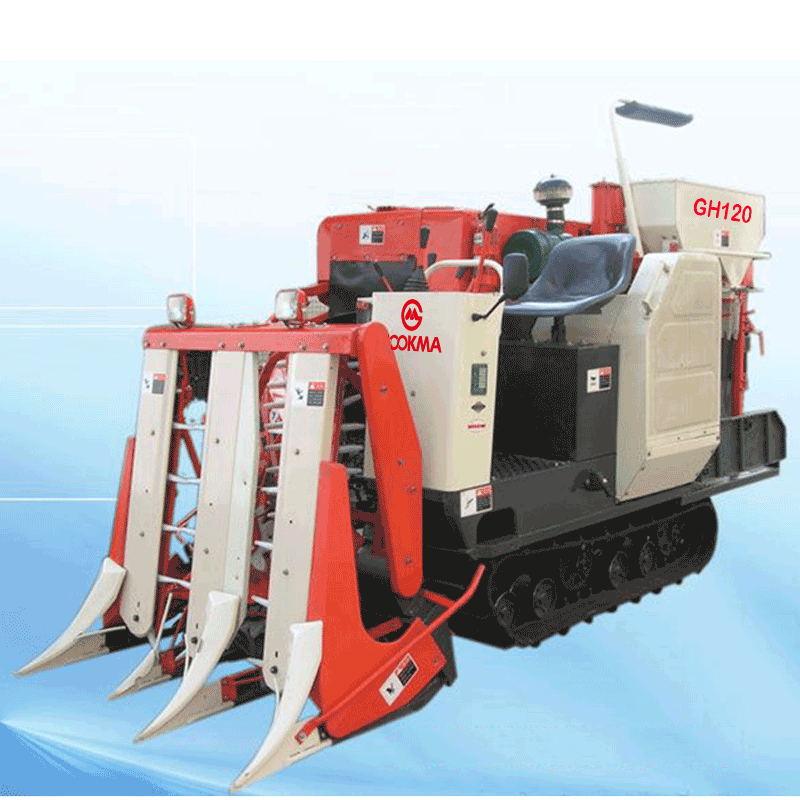

GH120 Rice Harvester

GH120 Rubber Crawler Self-propelling Half-feeding Combine Rice Harvester Gookma GH120 Rubber Crawler Self-propelling Half-feeding Combine Rice Harvester is a high tech product with independent intellectual property. The harvester has won national patents. Its operating principle and structural formation are ingenious. It has advantages in the lightness, flexibility and cost performance, it is suitable for generalization in rural areas

Products Details


Name Half Feeding Rice Combine Harvester


Sizes              (L*W*H) (mm) (in) 3650*1800*1820  (144*71*72)
Weight             (kg) (lb) 1480 (3267)
Engine Model 2105
Type Vertical water cooling two cylinder four stroke diesel engine
Rated output / speed     [ps (KW) / rpm] 35 (26) / 2400
Fuel Diesel
Starting Mode Electrical starting
Walking Section Track (pitch number*pitch*width)  (mm) (in) 42*90*350 (42*3.5*13.8)
Ground clearance               (mm) (in) 220 (8.7)
Shift mode Hydrostatic continuously variable transmission  (HST)
Shift grade Stepless (subtransmission 2 grade )
Walking speed Forward   (m/s) (ft/s) low speed: 0-1.06, (0-3.48)                                         high speed: 0-1.51 (0-4.95)
Backward  (m/s) (ft/s) llow speed: 0-1.06, (0-3.48)                                         high speed: 0-1.51 (0-4.95)
Steering mode Hydraulic control
Harvesting   Section Harvesting rows 3
Harvesting width            (mm) (in) 1200 (47)
Cutting height range         (mm) (in) 50-150 (1.97*5.9)
Adaptable height of crop (full height)  (mm) (in) 650-1200 (25.6*47.3)
Fallen crops adaptability                  (degrees) Cutting forward direction:   ≤75°                                                    Cutting reverse direction:   ≤65°
Threshing depth control system Manual
Gear of cutting table 3 levels (low speed, high speed, middle speed)
Threshing               Section Threshing system Monocular, axial, low detachable
Threshing cylinder Diameter* length  (mm) (in) 380*665 (15*26.2)
Speed            (rpm) 630
Secondary transmission mode Screw auger
Screening method Shaking, blasting, sucking
Grain                  Discharging Section Grain Discharging Funnel
Grain tank Capacity   [L (bag × 50L) ] 105 (2×50)
Grain unloading port 2
Straw Cutting Section Factory style Straw cutting length (mm)(in) 65 (2.6)
Working                  Efficiency Ha/h 0.1 - 0.2
Technical parameters are subject to change without prior notice.
● Agile mobility ● For working in small and medium fields ● Half feeding, keeps straws ● Harvesting width:1200mm ● Production capacity: 0.1-0.2ha/h ● Wide adaptability for fallen crops GH120a GH120 Half-feeding Combine Rice Harvester

Features and Advantages:

1.Gookma GH120 half feeding combine rice harvester is a national major support project of agricultural machinery. 2.It’s convenient in operating, it may be operated by both male and female easily. It’s small size,light weight, easy in travel control,flexible in turning. It’s simple in disassembling and convenient for maintenance. aszxcxzc2 3.It’s of strong power and grade ability,it can pass the ridges conveniently and flexibly. azxczc4 4.With high adaptability, it can be operated in both dry fields and paddy fields, and is suitable for harvesting in the large fields in plain areas and in the small fields in hill areas. 5.The machine is of compact structure, threshes in two times. The first threshing integrates threshing and conveying, and the second threshing integrates threshing and sundries removal. The overall threshing effect is good. 6.It can be widely adaptable for fallen crops. 7.It’s of low fuel consumption and high working efficiency. aszxcxzc8 8.Mini half-feeding is the current advanced harvesting technology in the world. It keeps straws, and ensures the recycling of straws easily and conveniently. azxczc8

Application Cases

Gookma small half feeding combine rice harvester is suitable for both family use and for small business purpose, it has been selling well and very popular in both domestic and overseas market, and has been enjoying high reputation among customers. azxczc5 azxczc7 azxczc6
